Product info RAZORSAW ORIZURU

Characteristics of ORIZURU

For more details, click the image below.

Folding saw with a straight handle and a wide blade

Compared to our folding saw series, the handle is more straight and the blade is wider. They have extra fine teeth, so it's great for craft work and woodworking. Handle is made out of beech.

Blade length: 240mm
Dozuki Extra Fine: teeth pitch: 1.0mm
Dozuki: teeh pitch: 1.5mm
Woodworking: teeth pitch: 1.7mm

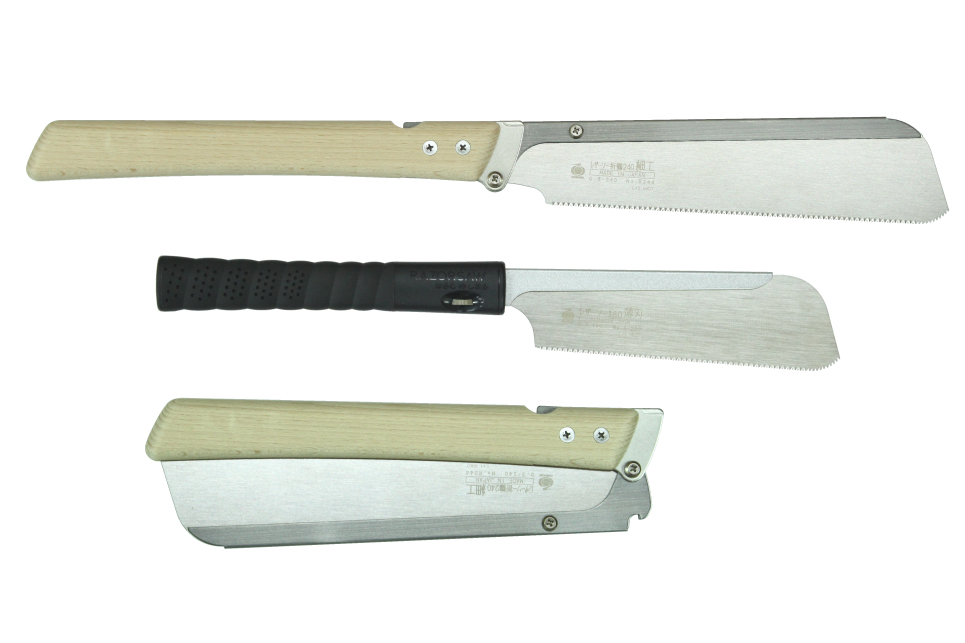

When folded, the length is 290mm.

The blade is long enough to make full strokes. It's small, and good for storage.

240mm long blade is easy to work with. The whole length is 535mm but when it's folded it's 290mm long. This is smaller than our 180mm series which is 390mm long.

Wide type

Unlike general folding saws, the blade is wider, so it's ideal for craft work and finishing work.

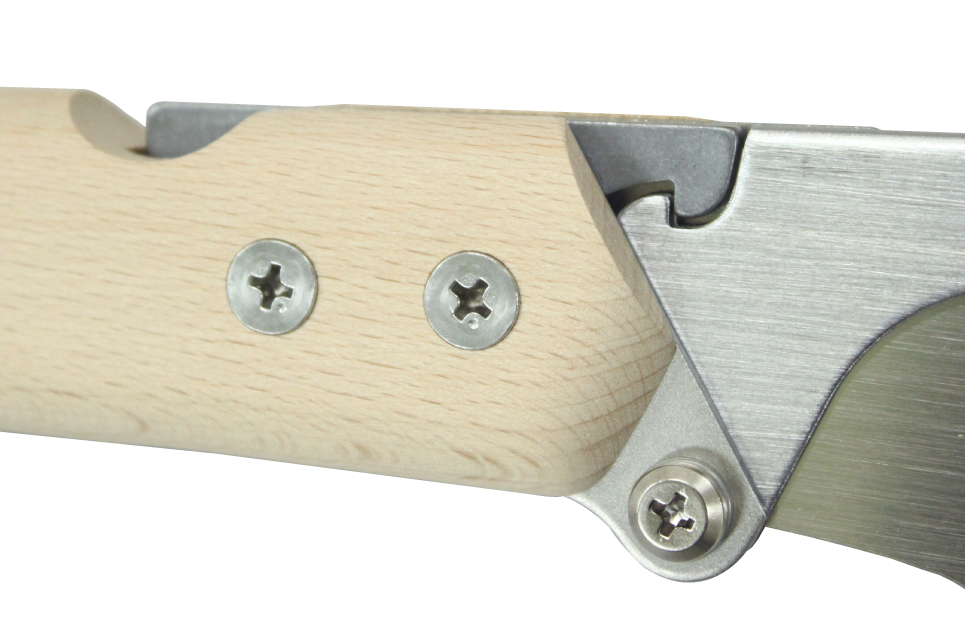

Automatic lock stopper

Easy to use. When you unfold the saw, stopper holds the blade firmly in its place. Do not touch the stopper except for when you fold the saw.

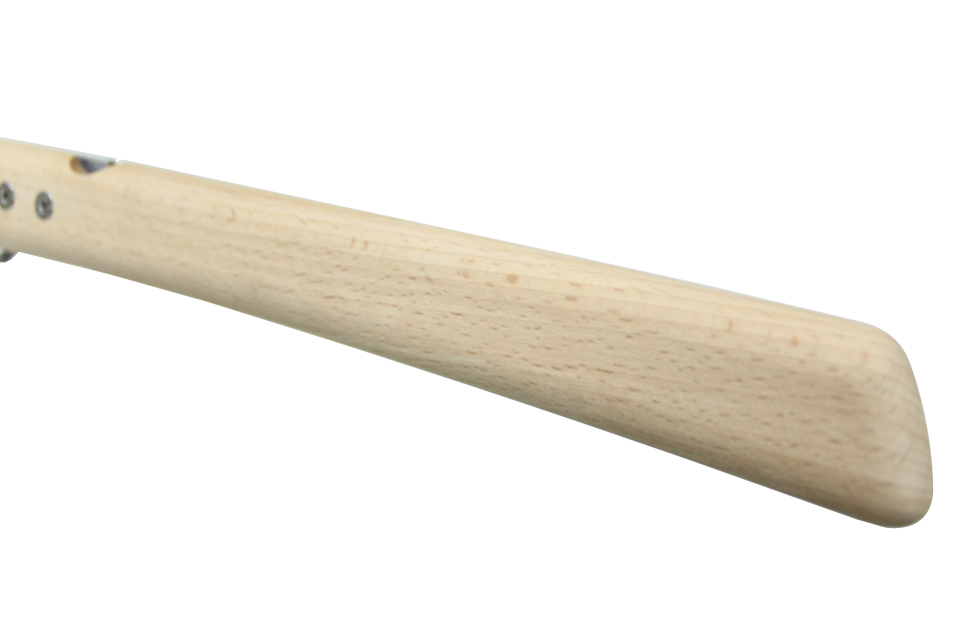

Wooden handle

Wooden handle made of beech, not painted.

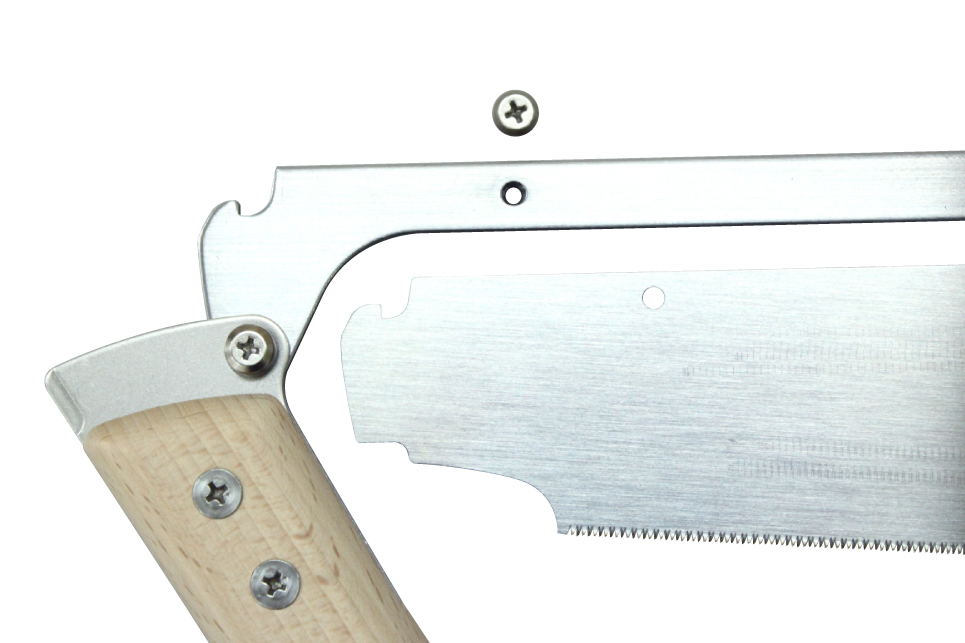

You just need to remove one screw to replace a blade.

We use a tapping screw, so you only need to remove one screw for replacing a blade. *If you are having hard time taking the blade out, please loosen the pivot screw a little.

RAZORSAW ORIZURU series Promotion Video

Items for professionals!

Details

Line up: Dozuki Extra Fine, Saiku, Woodworking

Characteristics of special surface treatment, impulse hardening, and wooden handle.

How to replace a blade.

Packages

Product info V series

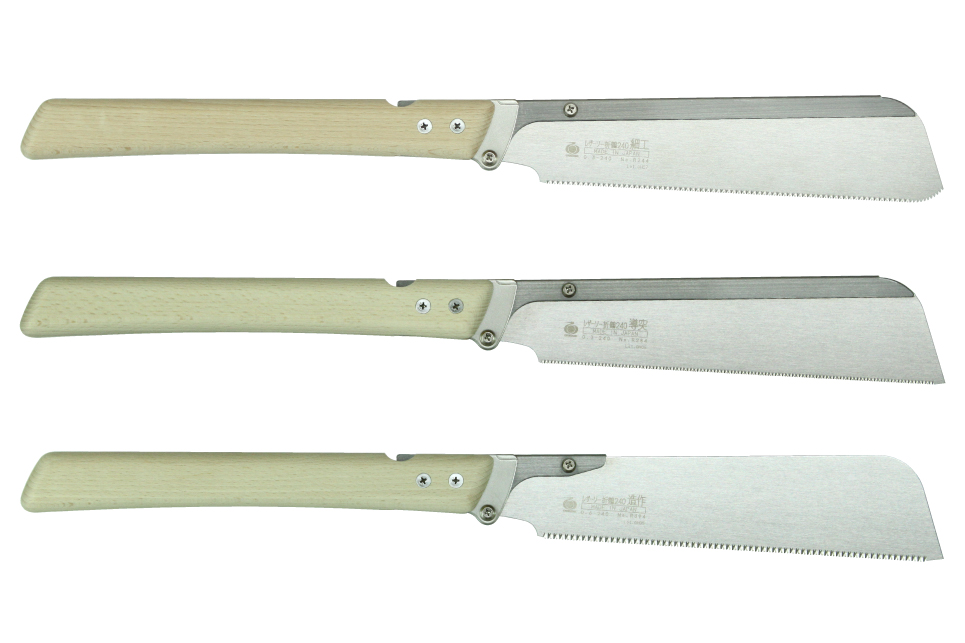

RAZORSAW ORIZURU 240
Dozuki Extra Fine

Easy storage! A saw with a straight handle that's for intricate work.

Dozuki saw that's 0.3mm thick and can be folded. Smallest teeth pitch, 1.0mm and ideal for intricate craft work. Long metal spline holds the blade firmly in its place.

Use

For precision woodworking, bamboo crafts, carpentry work, making furnitures, and making instruments.

Materials

General timber, Laminated wood, Bamboo material, Ply wood, MDF panel, Particle board (OSB), and Formica laminate.

Characteristics of the main body

For more details, click the icon.

  • Dozuki extra fine
    • Dozuki wide type can cut materials up to 60mm thick. Tatebiki Noko Dozuki Style can make both crosscuts and rip cuts.
  • Replaceable blade
    • By changing the blade, have cutting quality of a brand new saw. Item number of replacement blade is marked on the lower right side.
  • Folding saw
    • Blade can be folded into the handle. You can put them in your tool box.
  • Straight handle
    • Our saws with straight handles are mostly for indoor use. There are single edge saws and double edge saws.
  • Wood handle
    • Wooden handles are strong against humidity and dirt. Handle does not get slippery even if you sweat.
  • Special surface treatment
    • Surface of the blade is coated with nickel, and it prevents rusting.
  • Laser marking
    • Item number of replacement blade is marked on the blade , identifying which blade to purchase. Details are permanently marked by laser.
  • Impulse hardening
    • The surface of the blade is super hard but inside is flexible. They are strong against fruction and they last longer.

Characteristics of teeth

For more details, click the icon.

  • Crosscut blade
    • Crosscut saws cut wood fibers at certain width. If you use crosscut saw for making rip cut, you cannot make smooth and easy cuts.
  • Hijirime
    • Hijirime is making variation on the height of the teeth edges. It greatly improves cutting quality. Lower edges removes saw dust.
  • Teeth with sets
    • By putting sets on the teeth, it prevents the blade from being stuck in between the material.

Product specification

ClassificationArt. No.NameBlade LengthBlade ThicknessCutting WidthTeeth PitchJAN CodePrice
Main body2845RAZORSAW ORIZURU 240
Dozuki Extra Fine
240㎜0.3㎜0.46㎜ 1.0㎜4903524 4019876,400yen
Replacement BladeR284Replacement Blade for
RAZORSAW ORIZURU 240
Dozuki Extra Fine
4903524 4020142,880yen
*are limited for the domestic market. Please click the link above for more details on the overseas models.

RAZORSAW ORIZURU 240
Dozuki

Easy storage! With a curved tip, you can cut a hole on the surface.

Saiku saw with a blade that's 0.3mm thick. Using a curved tip, you can make a hole on the flat surface. The long back metal holds the blade firmly in its place.

Use

For carpentry work, wood crafts, bamboo crafts, making furnitures, and musical instruments.

Materials

MDF panel, Ply wood, General timber, Bamboo material, Formica laminate, Laminated wood, and Particle board (OSB)

Characteristics of the main body

For more details, click the icon.

  • Dozuki
    • For wood craft, bamboo craft, and final touch for woodworking. Cutting width is very thin and clean.
  • Replaceable blade
    • By changing the blade, have cutting quality of a brand new saw. Item number of replacement blade is marked on the lower right side.
  • Folding saw
    • Blade can be folded into the handle. You can put them in your tool box.
  • Straight handle
    • Our saws with straight handles are mostly for indoor use. There are single edge saws and double edge saws.
  • Wood handle
    • Wooden handles are strong against humidity and dirt. Handle does not get slippery even if you sweat.
  • Special surface treatment
    • Surface of the blade is coated with nickel, and it prevents rusting.
  • Laser marking
    • Item number of replacement blade is marked on the blade , identifying which blade to purchase. Details are permanently marked by laser.
  • Impulse hardening
    • The surface of the blade is super hard but inside is flexible. They are strong against fruction and they last longer.

Characteristics of teeth

For more details, click the icon.

  • Curved tip
    • The tip of the blade is curved. With such structure, you can make holes on a flat surface. Ideal for carpentry work.
  • Crosscut blade
    • Crosscut saws cut wood fibers at certain width. If you use crosscut saw for making rip cut, you cannot make smooth and easy cuts.
  • Hijirime
    • Hijirime is making variation on the height of the teeth edges. It greatly improves cutting quality. Lower edges removes saw dust.
  • Teeth with sets
    • By putting sets on the teeth, it prevents the blade from being stuck in between the material.

Product specification

ClassificationArt. No.NameBlade LengthBlade ThicknessCutting WidthTeeth PitchJAN CodePrice
Main body2445RAZORSAW ORIZURU 240
Dozuki
240㎜0.3㎜0.51㎜ 1.5㎜4903524 4019705,900yen
Replacement BladeR244Replacement Blade for
RAZORSAW ORIZURU 240
Dozuki
4903524 4020072,500yen
*are limited for the domestic market. Please click the link above for more details on the overseas models.

List of V series specifications

ClassificationArt. No.NameBlade LengthBlade ThicknessCutting Width Teeth PitchJAN CodePrice
Main Body2845RAZORSAW ORIZURU 240
Dozuki Extra Fine
240㎜0.3㎜0.46㎜1.0㎜4903524 4019876,400yen
Replacement BladeR284Replacement Blade for
RAZORSAW ORIZURU 240
Dozuki Extra Fine
4903524 4020142,880yen
Main Body2445RAZORSAW ORIZURU 240
Dozuki
240㎜0.3㎜0.51㎜1.5㎜4903524 4019705,900yen
Replacement BladeR244Replacement Blade for
RAZORSAW ORIZURU 240
Dozuki
4903524 4020072,500yen
Products listed above have compatible blades.
*Orizuru are limited for the domestic market. Please click the link above for more details on the overseas models.

Product info W series

RAZORSAW ORIZURU 240
Woodworking

You can easily put it in your tool box. It's a must have tool for your carpentry work.

The blade is 0.6mm thick and tough.

Use

For woodworking, carpentry work, and making furnitures.

Materials

Laminated wood, General timber, Composite wood panel, MDF panel, Particle board (OSB), and Ply wood.

Characteristics of the main body

For more details, click the icon.

  • Woodworking
    • Ideal for carpentry work and DIY. Woodworking saws are grouped into either single edge saws or double edge saws.
  • Replaceable blade
    • By changing the blade, have cutting quality of a brand new saw. Item number of replacement blade is marked on the lower right side.
  • Folding saw
    • Blade can be folded into the handle. You can put them in your tool box.
  • Straight handle
    • Our saws with straight handles are mostly for indoor use. There are single edge saws and double edge saws.
  • Wood handle
    • Wooden handles are strong against humidity and dirt. Handle does not get slippery even if you sweat.
  • Special surface treatment
    • Surface of the blade is coated with nickel, and it prevents rusting.
  • Laser marking
    • Item number of replacement blade is marked on the blade , identifying which blade to purchase. Details are permanently marked by laser.
  • Impulse hardening
    • The surface of the blade is super hard but inside is flexible. They are strong against fruction and they last longer.

Characteristics of teeth

For more details, click the icon.

  • Crosscut blade
    • Crosscut saws cut wood fibers at certain width. If you use crosscut saw for making rip cut, you cannot make smooth and easy cuts.
  • Hijirime
    • Hijirime is making variation on the height of the teeth edges. It greatly improves cutting quality. Lower edges removes saw dust.
  • Teeth with sets
    • By putting sets on the teeth, it prevents the blade from being stuck in between the material.

Product specification

ClassificationArt. No.NameBlade LengthBlade ThicknessCutting WidthTeeth PitchJAN CodePrice
Main body3945RAZORSAW ORIZURU 240
Woodworking
240㎜0.6㎜0.93㎜ 1.7㎜4903524 4019945,900yen
Replacement BladeR394Replacement Blade for
RAZORSAW ORIZURU 240
Woodworking
4903524 4020212,500yen
*are limited for the domestic market. Please click the link above for more details on the overseas models.
