TRONC. 180 series

TRONC. 180 series characteristics

For more details, click the image below.

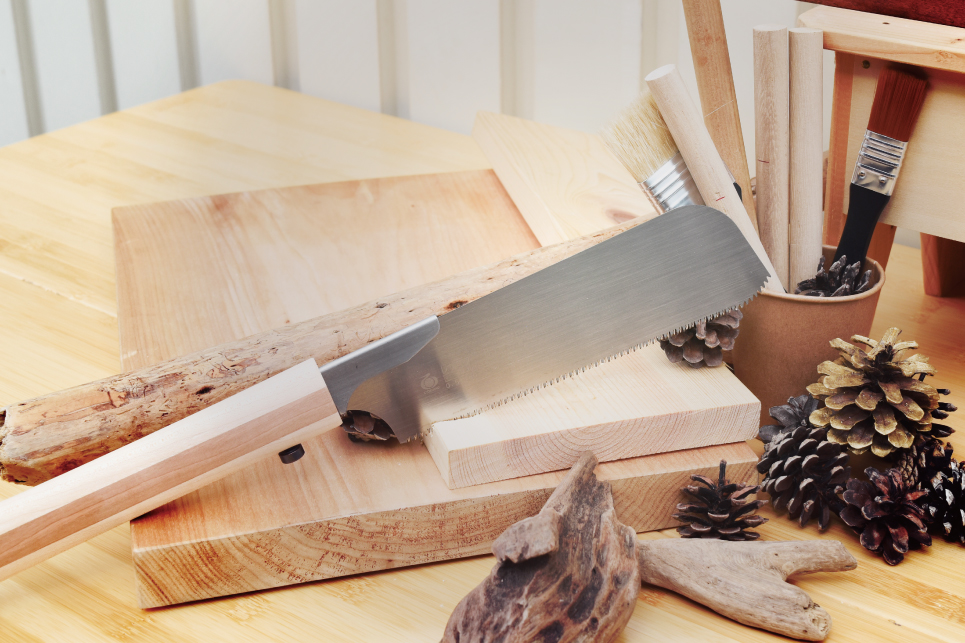

The striped wooden handle is made of natural maple and cherry wood and comes with a screw with antique looking finish. Recommended for DIY lovers.

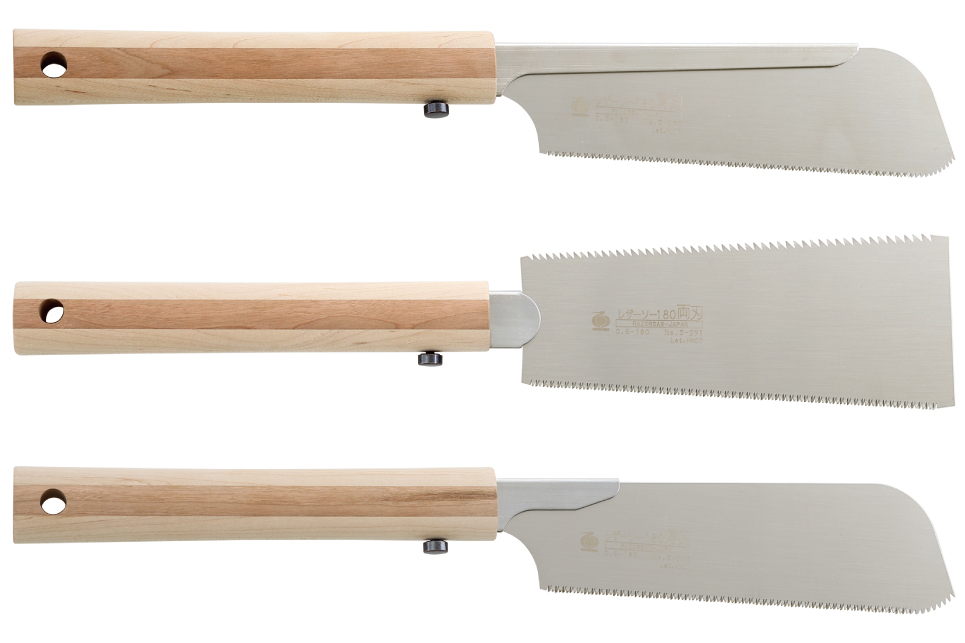

There are three types available for different uses.

180mm handsaw is small, so it is useful for working in small space and keeping it in a tool box.
We chose Usuba, Ryoba, and Atsuba blade from our 180mm series.

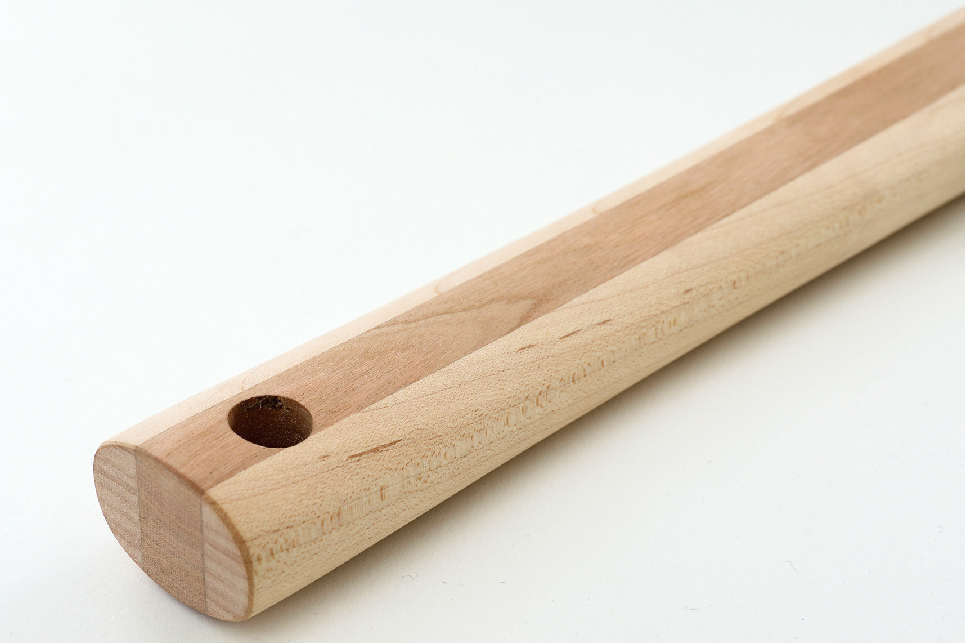

Wooden handle with striped pattern.

The handle is made by a craftsman in Miki city. The handle is made of layered maple and cherry wood.
It's 190mm long and there is a hole at the end of the handle, so you can hang it on the wall.

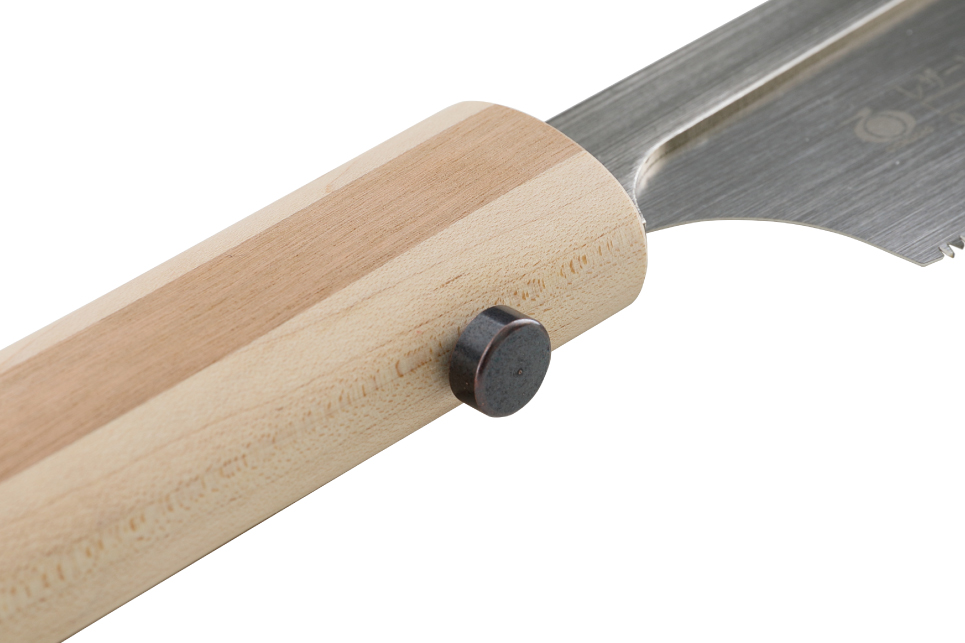

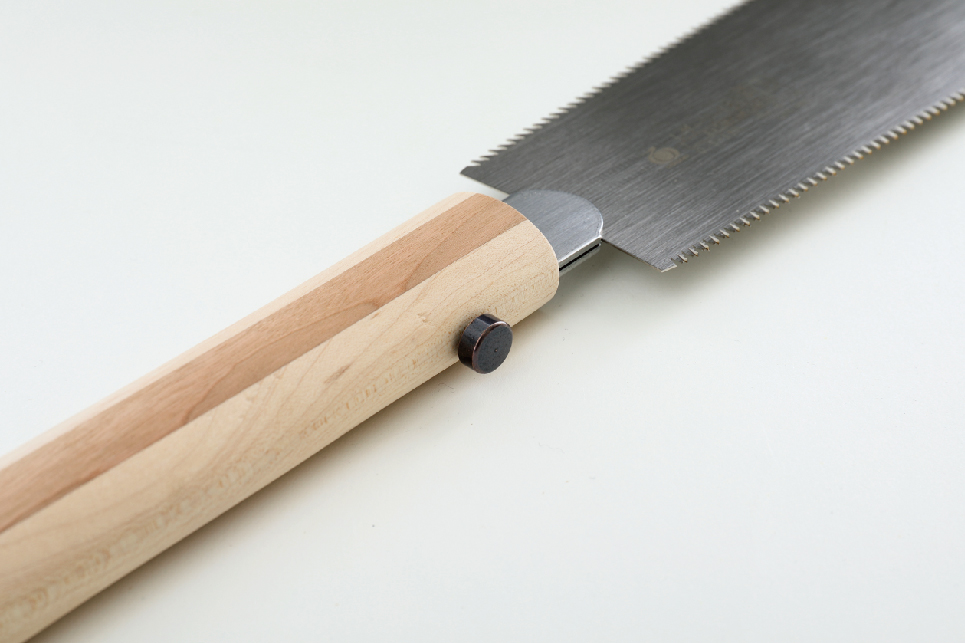

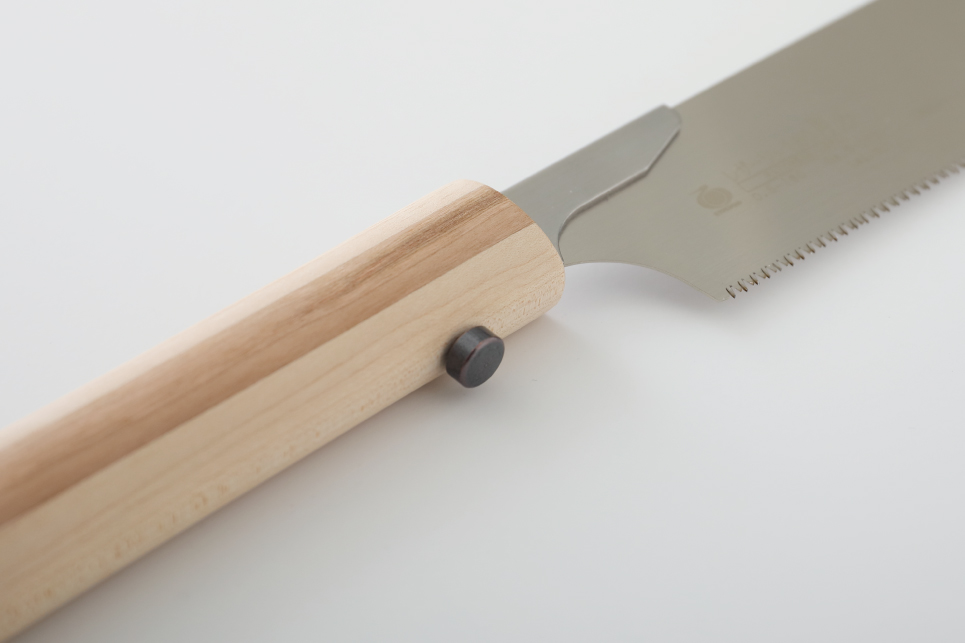

Antique color

We use GB plated screw instead of regular screw we use on our handsaws. The screw gives the handsaw an antique look.

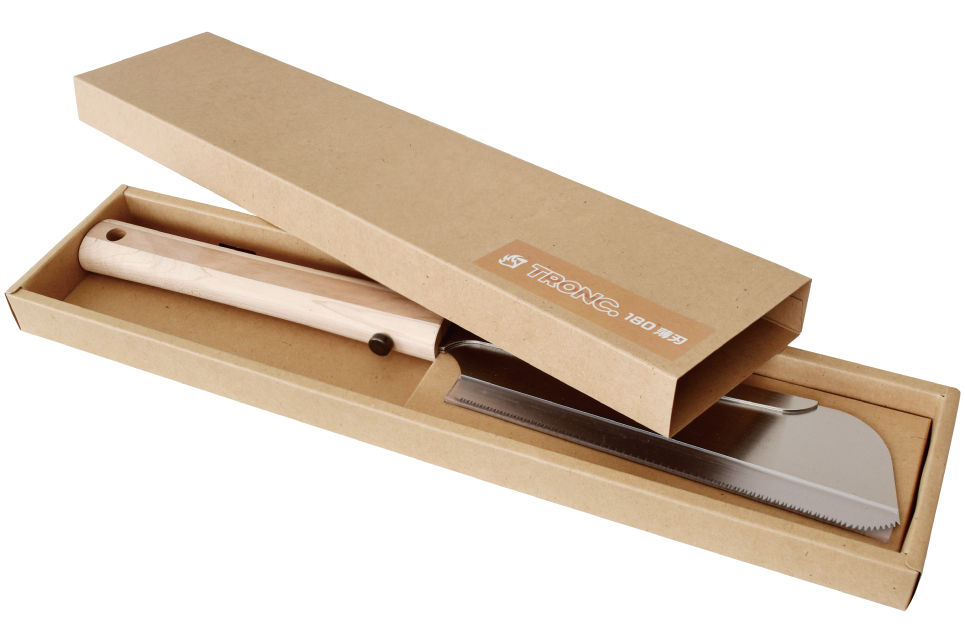

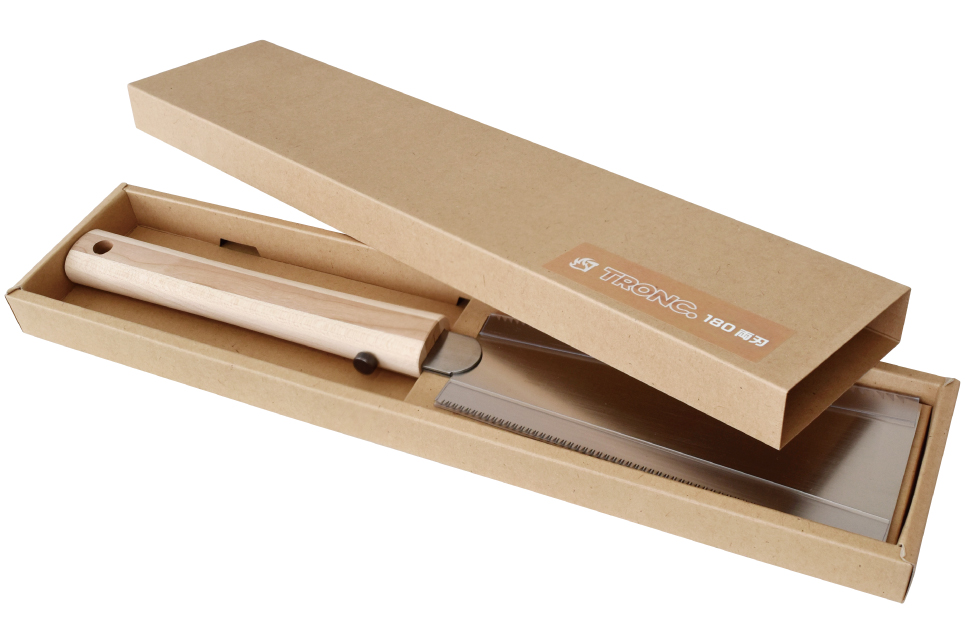

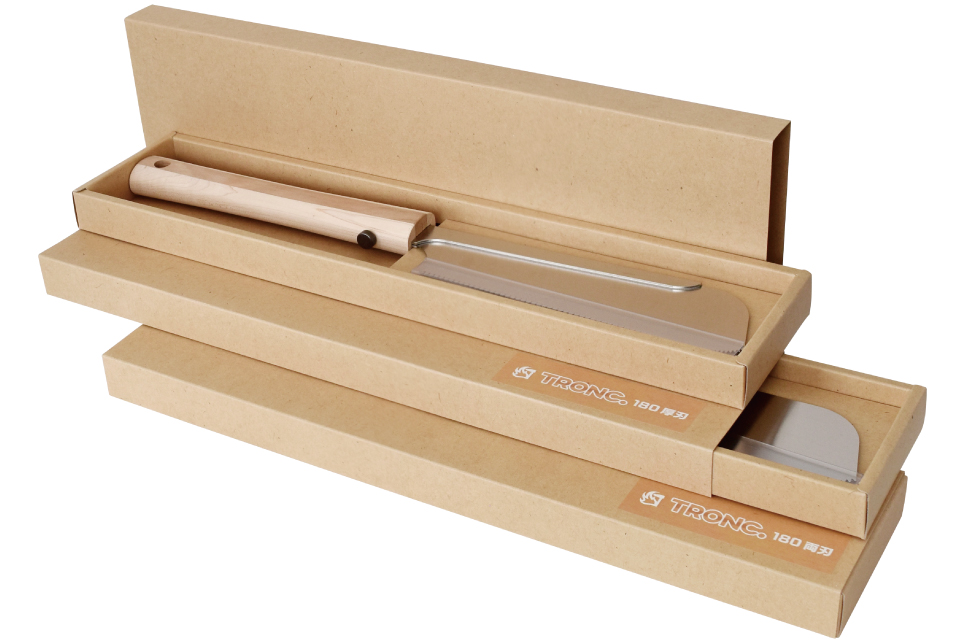

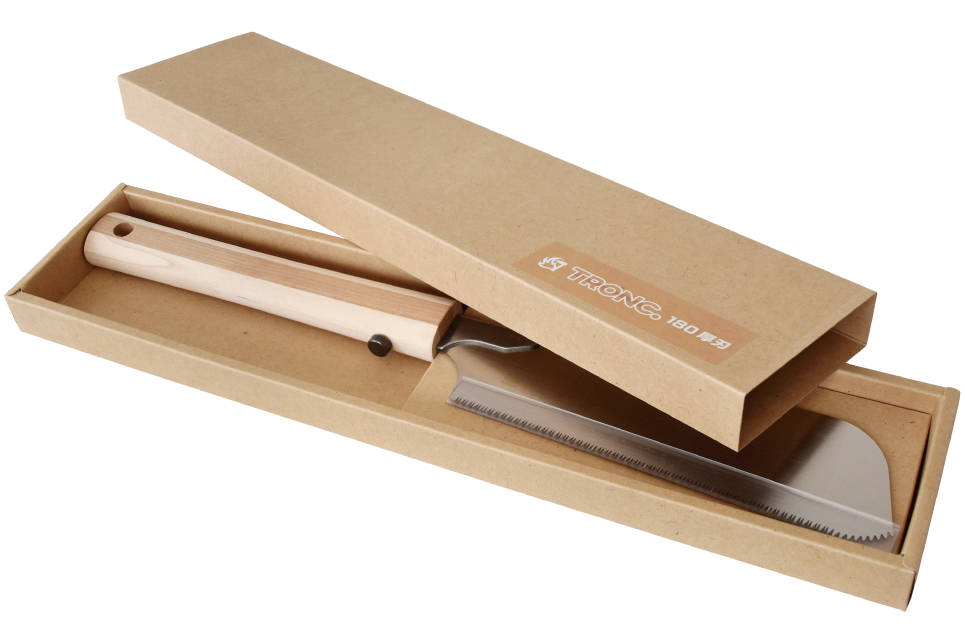

Package

Comes in a paper box.

TRONC. 180 USUBA

Craft saw with natural wooden handle.

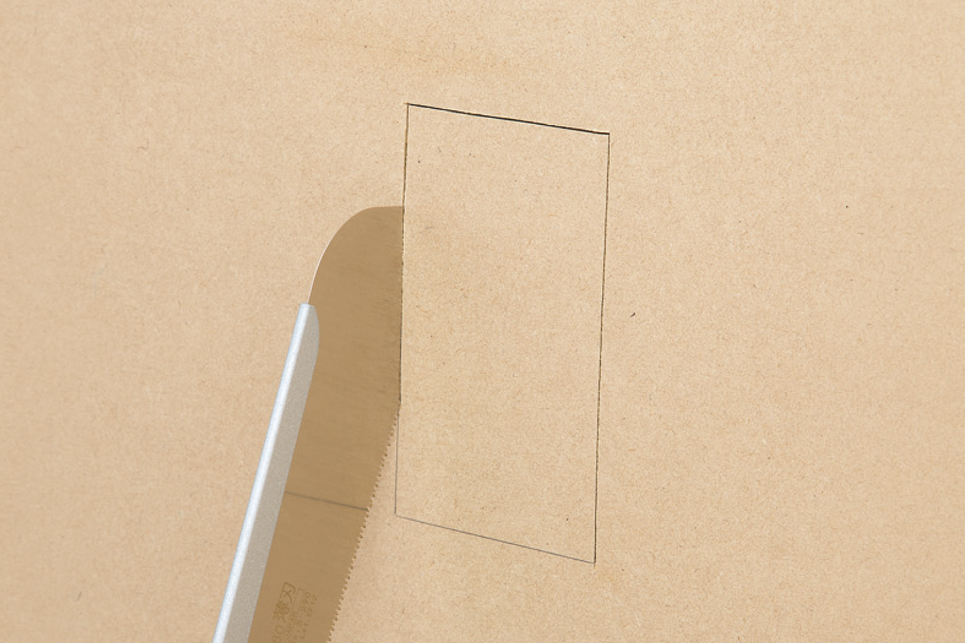

Handy handsaw for working in small space. The tip of the blade is curved, so you can cut a hole on a flat surface.

Use

For wood crafts, bamboo crafts, DIY, carpentry work, making furnitures and musical instruments.

Materials

MDF panel, Ply wood, General timber, Bamboo material, Formica laminate, Laminated wood, and Particle board (OSB)

Characteristics of the main body

For more details, click the icon.

  • Dozuki
    • For wood craft, bamboo craft, and final touch for woodworking. Cutting width is very thin and clean.
  • Replaceable blade
    • By changing the blade, have cutting quality of a brand new saw. Item number of replacement blade is marked on the lower right side.
  • Wood handle
    • Wooden handles are strong against humidity and dirt. Handle does not get slippery even if you sweat.
  • Compact
    • Smaller than 180mm, you can put it in your tool box. They are great for craft work and finishing touch. Great for DIY.
  • Straight handle
    • Our saws with straight handles are mostly for indoor use. There are single edge saws and double edge saws.
  • Special surface treatment
    • Surface of the blade is coated with nickel, and it prevents rusting.
  • Laser marking
    • Item number of replacement blade is marked on the blade , identifying which blade to purchase. Details are permanently marked by laser.
  • Impulse hardening
    • The surface of the blade is super hard but inside is flexible. They are strong against fruction and they last longer.

Characteristics of teeth

For more details, click the icon.

  • Curved tip
    • The tip of the blade is curved. With such structure, you can make holes on a flat surface. Ideal for carpentry work.
  • Crosscut blade
    • Crosscut saws cut wood fibers at certain width. If you use crosscut saw for making rip cut, you cannot make smooth and easy cuts.
  • Hijirime
    • Hijirime is making variation on the height of the teeth edges. It greatly improves cutting quality. Lower edges removes saw dust.
  • Teeth with sets
    • By putting sets on the teeth, it prevents the blade from being stuck in between the material.

Product specification

ClassificationArt. No.NameBlade LengthBlade ThicknessCutting WidthTeeth PitchJAN CodePrice
Main bodyTS243TRONC. 180 USUBA180㎜0.3㎜0.51㎜ 1.5㎜4903524 4024345,600yen
Replacement BladeS-290Replacement Blade for
RAZORSAW 180 USUBA
4903524 2290171,550yen
*It is compatible with RAZORSAW 180 USUBA. Click here for details.

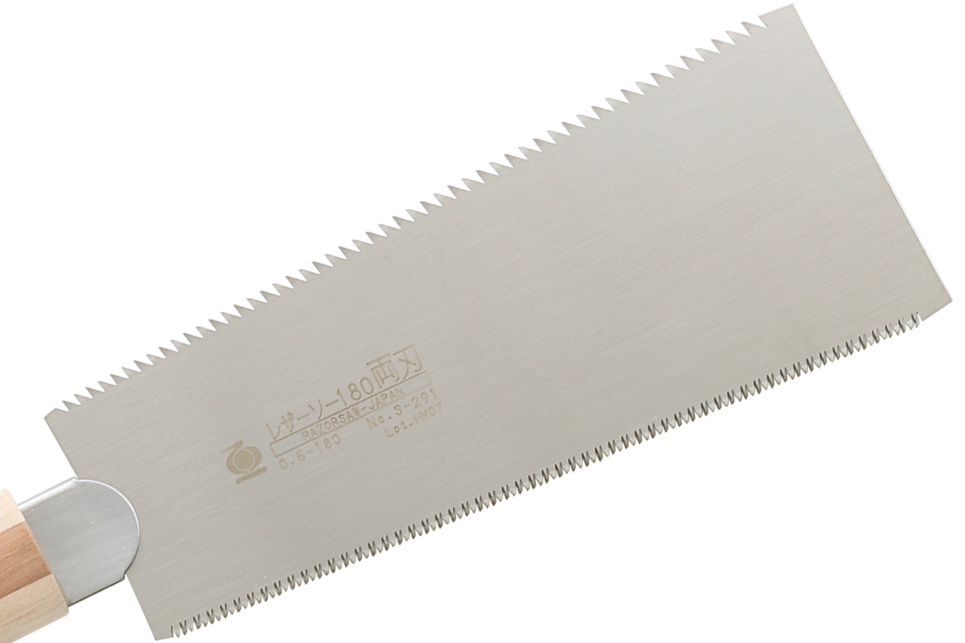

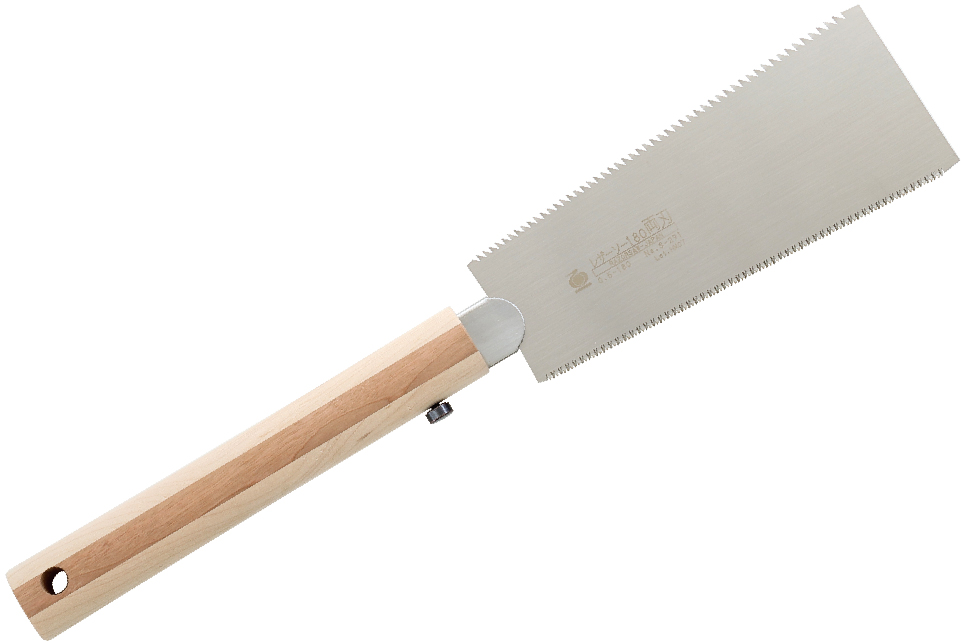

TRONC. 180 RYOBA

Double edge saw with natural wooden handle.

180mm size is useful for working in a limited space and keeping it in a tool box. You can make both crosscuts and rip cuts with a double edge saw. They are great for craft work and wood work.

Use

For DIY, wood crafts, carpentry work, making furnitures, sculpturing, musical instruments, and bamboo crafts.

Materials

Particle board (OSB), MDF panel, General timber, Laminated wood, Composite wood panel, and Bamboo material

Characteristics of the main body

For more details, click the icon.

  • Double edges
    • You can make both rip cuts and crosscuts with a double edge woodworking saw. The teeth pitch is smaller for making extra clean cuts.
  • Replaceable blade
    • By changing the blade, have cutting quality of a brand new saw. Item number of replacement blade is marked on the lower right side.
  • Wood handle
    • Wooden handles are strong against humidity and dirt. Handle does not get slippery even if you sweat.
  • Compact
    • Smaller than 180mm, you can put it in your tool box. They are great for craft work and finishing touch. Great for DIY.
  • Straight handle
    • Our saws with straight handles are mostly for indoor use. There are single edge saws and double edge saws.
  • Special surface treatment
    • Surface of the blade is coated with nickel, and it prevents rusting.
  • Laser marking
    • Item number of replacement blade is marked on the blade , identifying which blade to purchase. Details are permanently marked by laser.
  • Impulse hardening
    • The surface of the blade is super hard but inside is flexible. They are strong against fruction and they last longer.

Characteristics of teeth

For more details, click the icon.

  • Rip cut blade
    • Edges on rip cut saws are flat. It cuts the material like a chisel.
  • Rip cut decreasing pitch
    • Teeth pitch is bigger towards the tip of the blade. Teeth becomes smaller towards the handle.
  • Crosscut blade
    • Crosscut saws cut wood fibers at certain width. If you use crosscut saw for making rip cut, you cannot make smooth and easy cuts.
  • Hijirime
    • Hijirime is making variation on the height of the teeth edges. It greatly improves cutting quality. Lower edges removes saw dust.
  • Teeth with sets
    • By putting sets on the teeth, it prevents the blade from being stuck in between the material.

Product specification

ClassificationArt. No.NameBlade LengthBlade ThicknessCutting WidthTeeth PitchJAN CodePrice
Main bodyTS244TRONC. 180 RYOBA180㎜0.5㎜0.81㎜
0.79㎜
1.5㎜
3.7-2.7㎜
4903524 4024415,600yen
Replacement BladeS-291Replacement Blade for
RAZORSAW 180 RYOBA
4903524 2291161,680yen
*Cutting width and teeth pitch on the first row are for crosscut teeth, and the ones on the second row are for rip teeth.
*It is compatible with RAZORSAW 180 RYOBA. Click here for details.

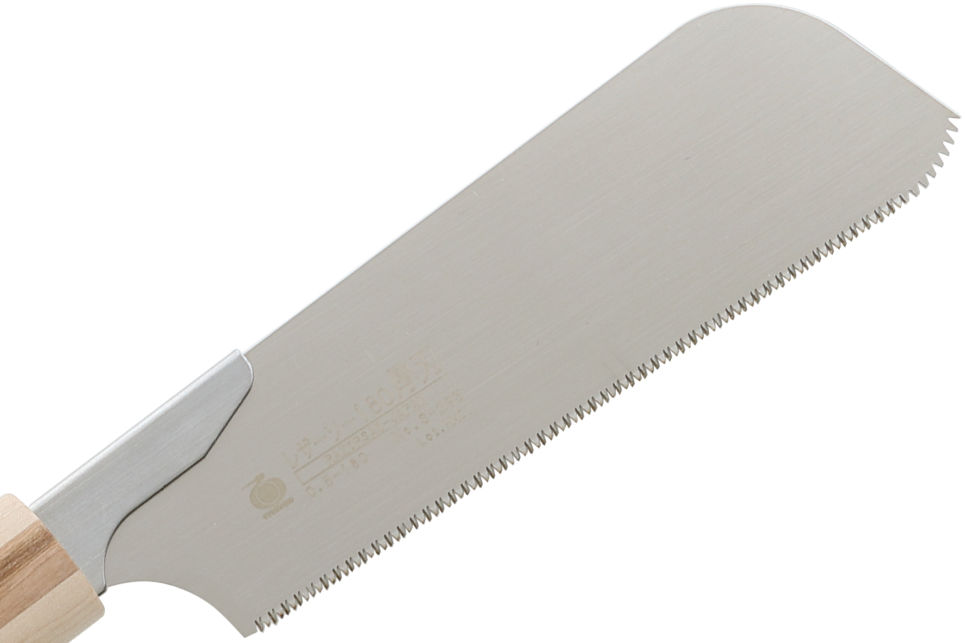

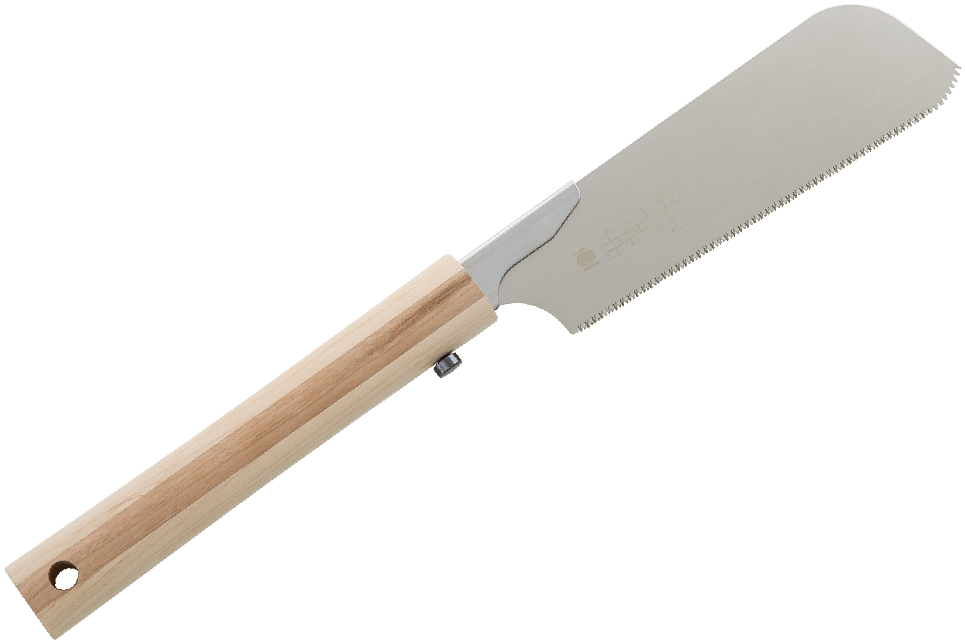

TRONC. 180 ATSUBA

Woodworking saw with natural wooden handle.

Short metal spine makes it easy to cut through the material. The tip of the blade is curved, so you can cut a hole on a flat surface. They have some rip teeth for cutting along the grain and diagonally to the grain.

Use

For DIY, wood crafts, carpentry work, making furnitures, musical instruments, and bamboo crafts

Materials

Laminated wood, General timber, Composite wood panel, MDF panel, Particle board (OSB), Ply wood, and Bamboo material

Characteristics of the main body

For more details, click the icon.

  • Woodworking
    • Ideal for carpentry work and DIY. Woodworking saws are grouped into either single edge saws or double edge saws.
  • Replaceable blade
    • By changing the blade, have cutting quality of a brand new saw. Item number of replacement blade is marked on the lower right side.
  • Wood handle
    • Wooden handles are strong against humidity and dirt. Handle does not get slippery even if you sweat.
  • Compact
    • Smaller than 180mm, you can put it in your tool box. They are great for craft work and finishing touch. Great for DIY.
  • Straight handle
    • Our saws with straight handles are mostly for indoor use. There are single edge saws and double edge saws.
  • Special surface treatment
    • Surface of the blade is coated with nickel, and it prevents rusting.
  • Laser marking
    • Item number of replacement blade is marked on the blade , identifying which blade to purchase. Details are permanently marked by laser.
  • Impulse hardening
    • The surface of the blade is super hard but inside is flexible. They are strong against fruction and they last longer.

Characteristics of teeth

For more details, click the icon.

  • Curved tip
    • The tip of the blade is curved. With such structure, you can make holes on a flat surface. Ideal for carpentry work.
  • With some rip teeth
    • They have rip teeth every certain number of crosscut teeth. It improves cutting quality.
  • Crosscut blade
    • Crosscut saws cut wood fibers at certain width. If you use crosscut saw for making rip cut, you cannot make smooth and easy cuts.
  • Hijirime
    • Hijirime is making variation on the height of the teeth edges. It greatly improves cutting quality. Lower edges removes saw dust.
  • Teeth with sets
    • By putting sets on the teeth, it prevents the blade from being stuck in between the material.

Product specification

ClassificationArt. No.NameBlade LengthBlade ThicknessCutting WidthTeeth PitchJAN CodePrice
Main bodyTS245TRONC. 180 ATSUBA180㎜0.5㎜0.81㎜ 1.5㎜4903524 4024585,600yen
Replacement BladeS-293Replacement Blade for
RAZORSAW 180 ATSUBA
4903524 2293141,550yen
*It is compatible with RAZORSAW 180 ATSUBA. Click here for details.

List of TRONC. 180 series specifications

ClassificationArt. No.NameBlade LengthBlade ThicknessCutting Width Teeth PitchJAN CodePrice
Main BodyTS243TRONC. 180 USUBA180㎜0.3㎜0.51㎜1.5㎜4903524 4024345,600yen
Replacement BladeS-290Replacement Blade for
RAZORSAW 180 USUBA
4903524 2290171,550yen
Main BodyTS244TRONC. 180 RYOBA180㎜0.5㎜0.81㎜
0.79㎜
1.5㎜
3.7-2.7㎜
4903524 4024415,600yen
Replacement BladeS-291Replacement Blade for
RAZORSAW 180 RYOBA
4903524 2291161,680yen
Main BodyTS245TRONC. 180 ATSUBA180㎜0.5㎜0.81㎜1.5㎜4903524 4024585,600yen
Replacement BladeS-293Replacement Blade for
RAZORSAW 180 ATSUBA
4903524 2293141,550yen
